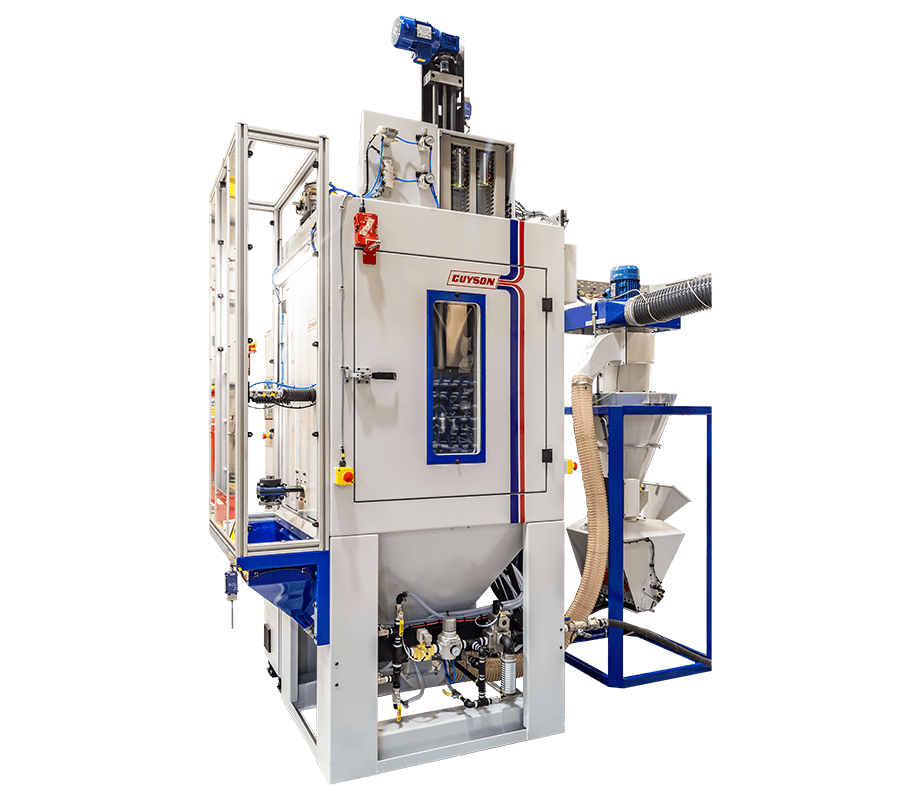

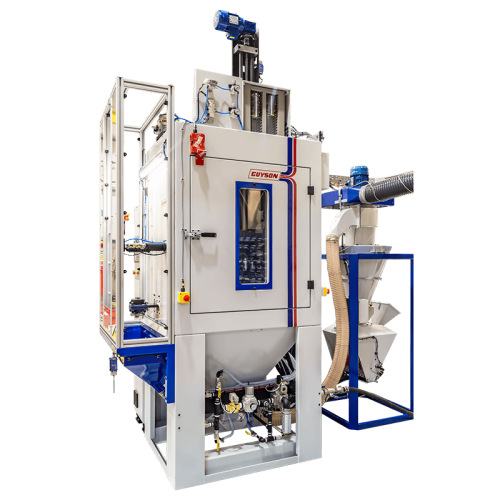

RXS400 – Automated Blast System
Guyson’s RXS400 Automated Blast System, the smallest of the RXS range, was designed specifically for the work-cell manufacturing environment.
The RXS400 comes with two indexing blast stations enabling simultaneous loading and processing, with flexible options for fixed or vertically traversing blast guns and an adaptable spindle design, to suit your process requirements.
Details
Interchangeable component-holding fixtures can be quickly secured on each spindle allowing product changes to be made speedily and easily.
A large side door with a viewing window offers full access to the process chamber for inspection, adjustment and maintenance.
Hinged pneumatically actuated entry and exit doors at the front load station seal the cabinet during the blast cycle.
The RXS400 operates with two sealed and abrasion protected ball bearing spindles that index in and out of the blast chamber employing a rotary actuator. Thus allowing maximum efficiency of operation, with one component being loaded during the blast cycle of the other piece.
The fixtured component rotates at a controlled, adjustable speed and is exposed to blast media from multiple nozzles that are pre-positioned at the correct angles and distances for overall or selective coverage of the target surfaces.
| Model | RXS400 |
|---|---|
| Hardware Type | Automated |
| Machine Type | Rotary Indexing Blast Systems |
| Max Component Weight | 10 kg |
| Minimum Cycle Time | 15 – 20 secs |
| Finishing Application | Cosmetic Finishing, Deburring, Shot Peening, Surface Preparation |
Why Choose Guyson's RXS Machines?
Discover four standout features of Guyson’s rotary indexing blasting systems.
Reliable Results
Guyson’s highly versatile RXS systems deliver continuous, selective or overall surface finishing of components produced in volume.
Highly Accurate
The RXS range is designed & engineered to ensure a high level of process & machine control for accurate and consistent results.
Additional Features Options
Components can be fitted with special fixtures & dedicated holding facilities, to accommodate diverse component shapes.
Increased Productivity
Guyson’s RXS range have been developed over decades, to provide a safe, automated solution for higher volumes and increased productivity.
