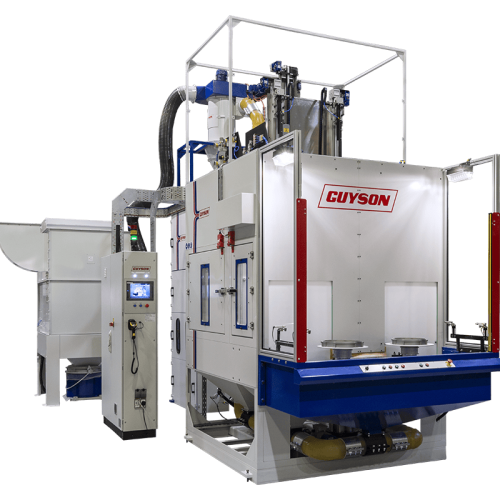

RXS1400 – Automated Blast System
The RXS1400 is Guyson’s largest ‘standard’ indexing rotating turntable machine, equipped with six revolving work spindles. Blasting takes place at two of the six spindles, which are positively driven by a toothed belt to ensure an even blast coverage during the rotation of the component.
Details
6 x Model 900 Blast Guns complete with electrical solenoid switches.
HMI/PLC control systems with graphic interface.
Reverse Jet Pulse Cleaning Dust Collection Unit may be fitted with a secondary HEPA14 filter, back-flap, and Hoerbiger explosion relief valve or fire suppression device (depending on application).
Blast guns are mounted on adjustable mounting blocks, to achieve optimum coverage of the component.
Blast guns can be secured to a vertical traversing gun drive, for taller components.
Components can be either manually, pick and place or robotically loaded and unloaded depending on volumes, handling complexity and subsequent operations.
A suction or pressure feed media delivery system, media separator and dust extraction system make up a complete installation and these items are specified to match each specific application.
| Model | RXS 1400 |
|---|---|
| Hardware Type | Automated |
| Machine Type | Rotary Indexing Blast Systems |
| Max Component Weight | 25 kg |
| Minimum Cycle Time | 20 – 30 secs |
| Finishing Application | Cosmetic Finishing, Deburring, Shot Peening, Surface Preparation |
Why Choose Guyson's RXS Machines?
Discover four standout features of Guyson’s rotary indexing blasting systems.
Reliable Results
Guyson’s highly versatile RXS systems deliver continuous, selective or overall surface finishing of components produced in volume.
Highly Accurate
The RXS range is designed & engineered to ensure a high level of process & machine control for accurate and consistent results.
Additional Features Available
Components can be fitted with special fixtures & dedicated holding facilities, to accommodate diverse component shapes.
Increased Productivity
Guyson’s RXS range have been developed over decades, to provide a safe, automated solution for higher volumes and increased productivity.
