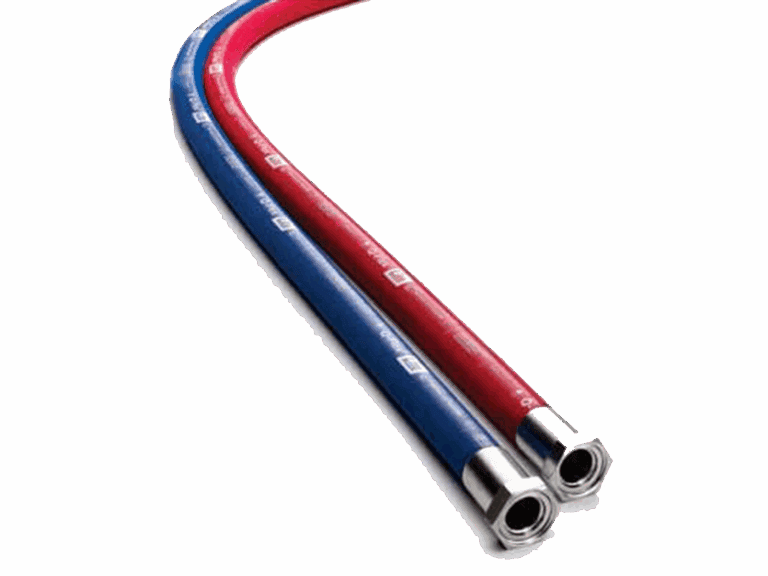

Q-Flex Lite food and brewers hose
A lightweight, extremely flexible hygienic hose for the transfer of food and beverage products under pressure or vacuum. Q-Flex Lite is also suitable for transfer of milk, fruit juices, wines and drinking water dependent on application.
Downloads
Details
Working pressure up to 6 bar
Reinforcement: synthetic textile fabric plies and steel wire helix
Benefits:
- FDA compliant
- EC1935/2004 compliant
- EC2023/2006 compliant
- ADI Free
- Phthalate free
- Plasticisers free
- BfR compliant
- Available in continuous lengths up to 40 metres.
- Applications include: milk, fruit juices, wines and drinking water hose duties.
- For specific applications and working conditions, please consult Guyson Technical Sales Department.
Technical specs
- Max Pressure: 6 bar (3:1 miniumum safety factor)
- Max Temperature: 85⁰C (dependent on application)
- Min Temperature: -30⁰C (dependent on application)
- Tube Material: white NR/NBR rubber (compiles with FDA)
- Cover Material: synthetic polymer
- Reinforcement: synthetic textile fabric plies and steel wire helix
- Available with blue cover. Red cover 1.1/2" to 2.1/2" size
| Hose Type | Q-Flex |
|---|---|
| Nominal Bore Sizes (mm) | 25, 38, 51, 63.5, 76 |
| Applications | Milk, Fruit Juices, Wines, Drinking Water Hose Duties |
Features & Benefits
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Mauris eros dolor pellentesque sed luctus dapibus lobortis orci.
Feature 1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Feature 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Feature 3
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Feature 4
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.
Gallery
Hose & Coupling Management Service
The Hose & Couplings Division at Guyson can offer various hose & coupling management services from initial hose selection through to on-going inspection throughout the product lifetime. When initially purchasing a hose or coupling assembly from us, the benefits include:
- Free on-site advice in selecting the correct hose/coupling for the customer’s application and working conditions
- Supply of high quality flexible hose assemblies manufactured under our ISO 9001:2015 accredited quality system
- Hose & coupling assemblies 100% pressure tested prior to despatch
- All levels of certification can be provided if required
In addition to the support offered from our factory, we can offer various services on site at the customer’s premises these include:
- Visit by your local Area Sales Manager to carry out a hose survey to create a hose register documenting all hoses accessible on site
- Site surveys at agreed intervals to visually inspect hose & couplings on the register
