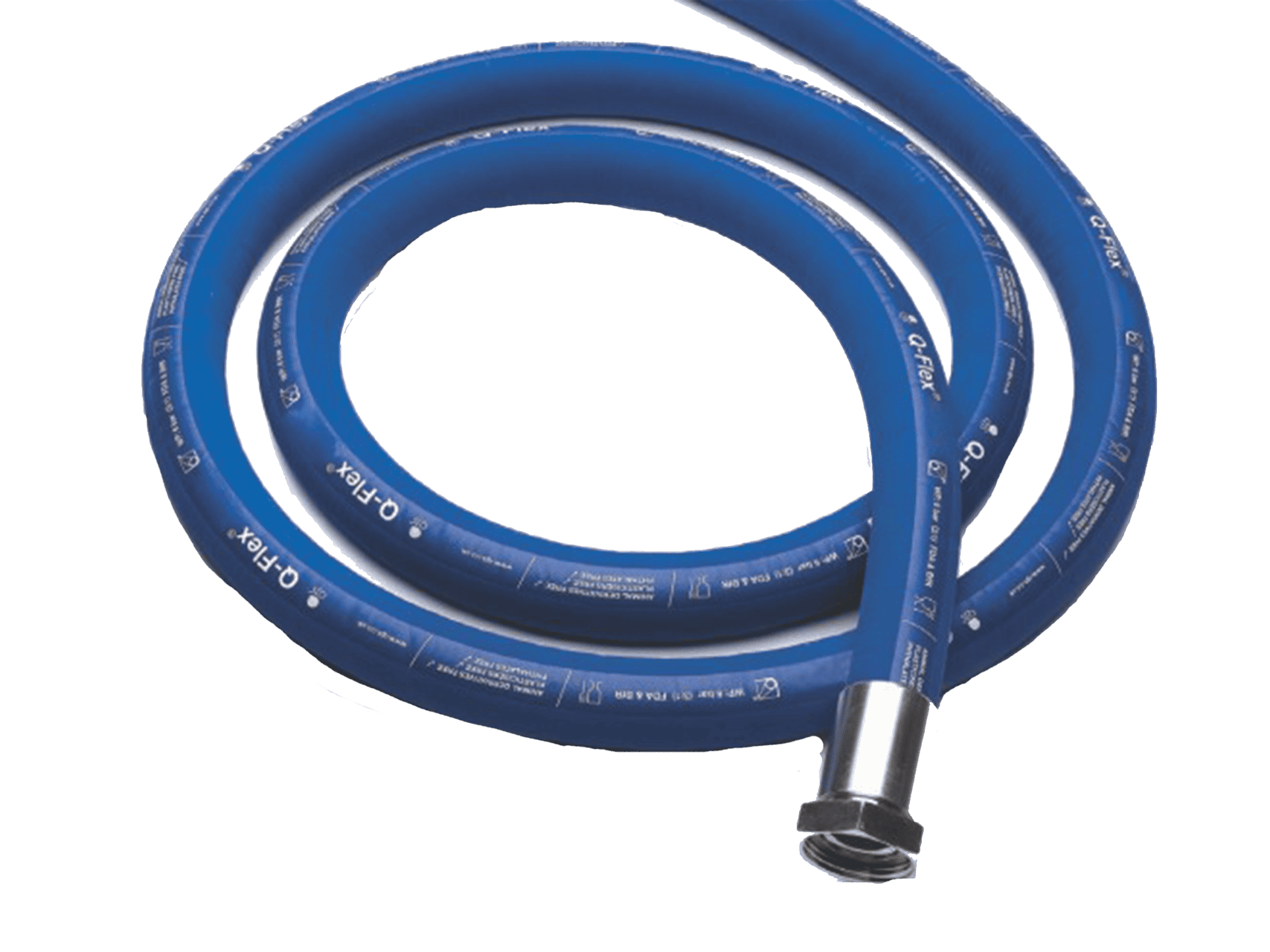

Q-Flex Anti Crush food and brewers hose

A lightweight, crush resistant extremely flexible hygienic hose for the transfer of food and beverage products under pressure or vacuum.

The special crush resistant structure of this hose has been designed for tanker unloading bay applications where accidental hose crush may occur.

Enquire with us
Q-Flex Anti-crush

Downloads

Q-Flex Anti-crush Hose Catalogue

Details

Q-Flex Anti-crush

Working pressure up to 6 bar

Reinforcement: synthetic textile fabric plies and plastic embedded helix

Benefits:

  • FDA compliant
  • EC1935/2004 compliant
  • EC2023/2006 compliant
  • ADI Free
  • Phthalate free
  • Plasticisers free
  • BfR compliant
  • Available in continuous lengths up to 40 metres.
  • Applications include: liquid food and beverages
  • For specific applications and working conditions, please consult Guyson Technical Sales Department.

Technical spec

  • Max Pressure: 6 bar (3:1 miniumum safety factor)
  • Max Temperature: 85⁰C (dependent on application)
  • Min Temperature: -30⁰C (dependent on application)
  • Tube Material: white NR/NBR rubber (compiles with FDA)
  • Cover Material: synthetic polymer corrugated smooth
  • Reinforcement: synthetic textile fabric plies and plastic embedded helix
Hose Type

Q-Flex
Nominal Bore Sizes (mm)

51

,

63.5
Applications

Liquid Food

,

Beverages

Features & Benefits

Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Mauris eros dolor pellentesque sed luctus dapibus lobortis orci.

Feature 1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.

Feature 2

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.

Feature 3

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.

Feature 4

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Morbi volutpat justo sed efficit cursus. Mauris fringilla quam.

Gallery

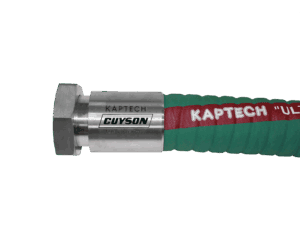

Ultraflex Green

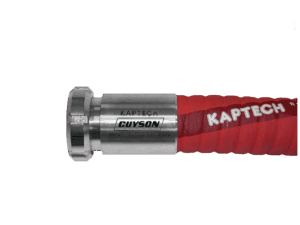

Ultraflex Red

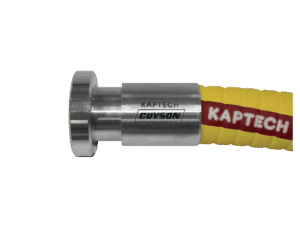

Ultraflex Yellow

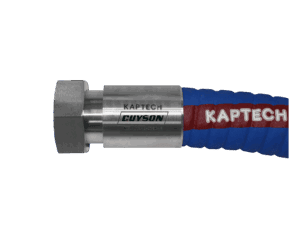

Ultraflex Blue

Hose & Coupling Management Service

The Hose & Couplings Division at Guyson can offer various hose & coupling management services from initial hose selection through to on-going inspection throughout the product lifetime. When initially purchasing a hose or coupling assembly from us, the benefits include:

  • Free on-site advice in selecting the correct hose/coupling for the customer’s application and working conditions
  • Supply of high quality flexible hose assemblies manufactured under our ISO 9001:2015 accredited quality system
  • Hose & coupling assemblies 100% pressure tested prior to despatch
  • All levels of certification can be provided if required

In addition to the support offered from our factory, we can offer various services on site at the customer’s premises these include:

  • Visit by your local Area Sales Manager to carry out a hose survey to create a hose register documenting all hoses accessible on site
  • Site surveys at agreed intervals to visually inspect hose & couplings on the register
