Hansen ST series straight-through couplings
Hansen ST series straight-through couplings

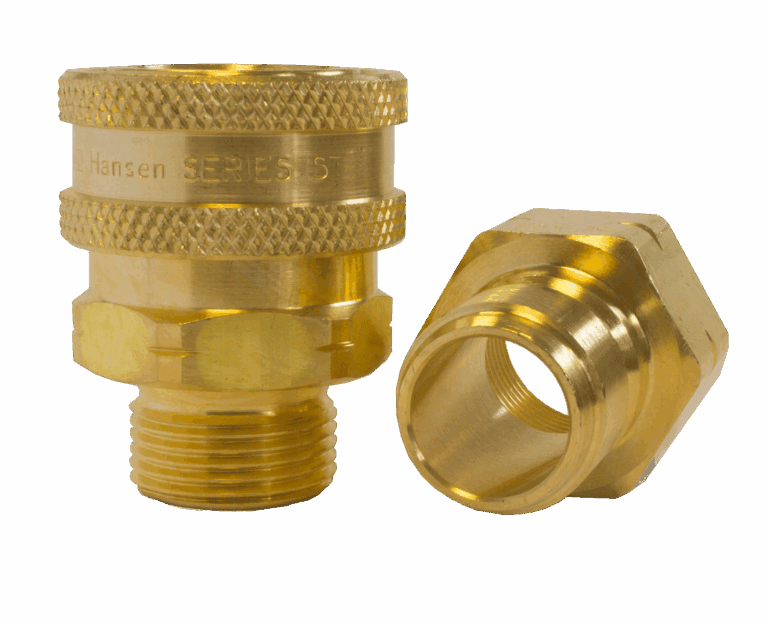

Hansen ST couplings are specifically designed as straight-through couplings without self-sealing valves.
- Their smooth, unrestricted bore permits full flow of liquids and gases
- Alternative hose stem and threaded end connections give neat, compact installations with the minimum number of joints
- Availability in brass and stainless steel allows a wide variety of fluids to be handled without corrosion.
Product Details
Applications include: water, cooling water, washdown, grease, lubricants, general fluid transfer etc.
A technical brochure and Safety Information Notice on this range of couplings is available in the downloads (tab) section shown above. A copy of these documents should be distributed and read by all individuals responsible for using and/or selecting this range of couplings, prior to use. For specific applications and working conditions , please consult Guyson Technical Sales Department.
Hansen ST Couplings can also be supplied as part of a ready-to-use flexible hose assembly: see our Kaptech flexible hose range for details.
| Body Size | Steel Part Number (nitrile seals) | Brass Part Number (nitrile seals) | 303 Stainless Steel Part Number (nitrile seals) | Viton seals suffix | EPDM seals suffix | NPTF | BSPP | Hosetail I/D | Connection Type | Coupling Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | - | 1S10 | LL1S10 | -143 | -192 | 1/8-27 | - | - | Male thread | Socket |
| 1/8 | - | 1S10-BS | - | -143 | -192 | - | 1/8-28 | - | Male thread | Socket |
| 1/8 | 1T10E | B1T10 | LL1T10 | - | - | 1/8-27 | - | - | Male thread | Plug |
| 1/8 | 1T15 | B1T15 | - | - | - | 1/4-18 | - | - | Male thread | Plug |
| 1/8 | - | 1S11 | LL1S11 | -143 | -192 | 1/8-27 | - | - | Female thread | Socket |
| 1/8 | - | 1S11-BS | LL1S11-BS | -143 | -192 | - | 1/8-27 | - | Female thread | Socket |
| 1/8 | 1T11 | B1T11 | LL1T11 | - | - | 1/8-27 | - | - | Female thread | Plug |
| 1/8 | - | B1T11-BS | LL1T11-BS | - | - | - | 1/8-27 | - | Female thread | Plug |
| 1/8 | - | 1S12 | LL1S12 | -143 | -192 | - | - | 3/16 | Hosetail | Socket |
| 1/8 | - | 1S17 | LL1S17 | -143 | -192 | - | - | 1/4 | Hosetail | Socket |
| 1/8 | - | B1T12 | LL1T12 | - | - | - | - | 3/16 | Hosetail | Plug |
| 1/8 | - | B1T17 | LL1T17 | - | - | - | - | 1/4 | Hosetail | Plug |
| 1/4 | - | 2S15 | LL2S15 | -143 | -192 | 1/4-18 | - | - | Male thread | Socket |
| 1/4 | 2T15 | B2T15 | LL2T15 | - | - | 1/4-18 | - | - | Male thread | Plug |
| 1/4 | - | B2T15-BS | LL2T15-BS | - | - | - | 1/4-19 | - | Male thread | Plug |
| 1/4 | - | 2S16 | LL2S16 | -143 | -192 | 1/4-18 | - | - | Female thread | Socket |
| 1/4 | - | 2S16-BS | LL2S16-BS | -143 | -192 | - | 1/4-19 | - | Female thread | Socket |
| 1/4 | 2T16 | B2T16 | LL2T16 | - | - | 1/4-18 | - | - | Female thread | Plug |
| 1/4 | - | B2T16-BS | LL2T16-BS | - | - | - | 1/4-19 | - | Female thread | Plug |
| 1/4 | - | 2S17 | LL2S17 | -143 | -192 | - | - | 1/4 | Hosetail | Socket |
| 1/4 | - | B2T17 | LL2T17 | - | - | - | - | 1/4 | Hosetail | Plug |
| 3/8 | - | 3S20 | LL3S20 | -143 | -192 | 3/8-18 | - | - | Male thread | Socket |
| 3/8 | - | 3S20-BS | LL3S20-BS | -143 | -192 | - | 3/8-19 | - | Male thread | Socket |
| 3/8 | 3T20 | B3T20 | LL3T20 | - | - | 3/8-18 | - | - | Male thread | Plug |
| 3/8 | - | B3T20-BS | LL3T20-BS | - | - | - | 3/8-19 | - | Male thread | Plug |
| 3/8 | - | 3S21 | LL3S21 | -143 | -192 | 3/8-18 | - | - | Female thread | Socket |
| 3/8 | - | 3S21-BS | LL3S21-BS | -143 | -192 | - | 3/8-19 | - | Female thread | Socket |
| 3/8 | 3T21 | B3T21 | LL3T21 | - | - | 3/8-19 | - | - | Female thread | Plug |
| 3/8 | - | B3T21-BS | LLT21-BS | - | - | - | 3/8-19 | - | Female thread | Plug |
| 3/8 | - | 3S22 | LL3S21 | -143 | -192 | - | - | 3/8 | Hosetail | Socket |
| 3/8 | - | B3T22 | LL3T22 | - | - | - | - | 3/8 | Hosetail | Plug |
| 1/2 | - | 4S25 | LL4S25 | -143 | -192 | 1/2-14 | - | - | Male thread | Socket |
| 1/2 | - | 4S25-BS | LL4S25-BS | -143 | -192 | - | 1/2-14 | - | Male thread | Socket |
| 1/2 | 4T25 | B4T25 | LL4T25 | - | - | 1/2-14 | - | - | Male thread | Plug |
| 1/2 | - | B4T25-BS | LL4T25-BS | - | - | - | 1/2-14 | - | Male thread | Plug |
| 1/2 | - | 4S26 | LL4S26 | -143 | -192 | 1/2-14 | - | - | Female thread | Socket |
| 1/2 | - | 4S26-BS | LL4S26-BS | -143 | -192 | - | 1/2-14 | - | Female thread | Socket |
| 1/2 | 4T26 | B4T26 | LL4T26 | - | - | 1/2-14 | - | - | Female thread | Plug |
| 1/2 | - | B4T26-BS | LL4T26-BS | - | - | - | 1/2-14 | - | Female thread | Plug |
| 1/2 | - | 4S27 | LL4S27 | -143 | -192 | - | - | 1/2 | Hosetail | Socket |
| 1/2 | - | B4T27 | LL4T27 | - | - | - | - | 1/2 | Hosetail | Plug |
| 3/4 | - | 6S30 | LL6S30 | -143 | -192 | 3/4-14 | - | - | Male thread | Socket |
| 3/4 | - | 6S30-BS | LL6S30-BS | -143 | -192 | - | 3/4-14 | - | Male thread | Socket |
| 3/4 | 6T30 | B6T30 | LL6T30 | - | - | 3/4-14 | - | - | Male thead | Plug |
| 3/4 | - | B6T30-BS | LL6T30-BS | - | - | - | 3/4-14 | - | Male thread | Plug |
| 3/4 | - | 6S31 | LL6S31 | -143 | -192 | 3/4-14 | - | - | Female thread | Socket |
| 3/4 | - | 6S31-BS | LL6S31-BS | -143 | -192 | - | 3/4-14 | - | Female thread | Socket |
| 3/4 | 6T31 | B6T31 | LL6T31 | - | - | 3/4-14 | - | - | Female thread | Plug |
| 3/4 | - | B6T31-BS | LL6T31-BS | - | - | - | 3/4-14 | - | Female thread | Plug |
| 3/4 | - | 6S32 | LL6S32 | -143 | -192 | - | - | 3/4 | Hosetail | Socket |
| 3/4 | - | B6T32 | LL6T32 | - | - | - | - | 3/4 | Hosetail | Plug |
| 1 | - | 8S35 | - | -143 | -192 | 1-11.1/2 | - | - | Male thread | Socket |
| 1 | - | 8S35-BS | - | -143 | -192 | - | 1-11 | - | Male thread | Socket |
| 1 | 8T35 | B8T35 | LL8T35 | - | - | 1-11.1/2 | - | - | Male thread | Plug |
| 1 | - | B8T35-BS | - | - | - | - | 1-11 | - | Male thread | Plug |
| 1 | - | 8S36 | LL8S36 | -143 | -192 | 1-11.1/2 | - | - | Female thread | Socket |
| 1 | - | 8S36-BS | LL8S36-BS | -143 | -192 | - | 1-11 | - | Female thread | Socket |
| 1 | 8T36 | B8T36 | LL8T36 | - | - | 1-11.1/2 | - | - | Female thread | Plug |
| 1 | - | B8T36-BS | LL8T36-BS | - | - | - | 1-11 | - | Female thread | Plug |
| 1 | - | 8S37 | LL8S37 | -143 | -192 | - | - | 1 | Hosetail | Socket |
| 1 | 8T37 | - | LL8T37 | - | - | - | - | 1 | Hosetail | Plug |
| 1.1/4 | 10T40 | B10T40 | LL10T40 | - | - | 1.1/4-11.1/2 | - | - | Male thread | Plug |
| 1.1/4 | - | B10T40-BS | - | - | - | - | 1.1/4-11 | - | Male thread | Plug |
| 1.1/4 | - | 10S41 | LL10S41 | -143 | -192 | 1.1/4-11 | - | - | Female thread | Socket |
| 1.1/4 | - | 10S41-BS | - | -143 | -192 | - | 1.1/4-11 | - | Female thread | Socket |
| 1.1/4 | 10T41 | B10T41 | LL10T41 | - | - | 1.1/4-11 | - | - | Female thread | Plug |
| 1.1/4 | - | B10T41-BS | LL10T41-BS | - | - | - | 1.1/4-11 | - | Female thread | Plug |
| 1.1/2 | 12T45 | B12T45 | - | - | - | 1.1/2-11.1/2 | - | - | Male thread | Plug |
| 1.1/2 | - | B12T45-BS | - | - | - | - | 1.1/2-11 | - | Male thead | Plug |
| 1.1/2 | - | 12S46 | LL12S46 | -143 | -192 | 1.1/2-11.1/2 | - | - | Male thread | Socket |
| 1.1/2 | - | 12S46-BS | LL12S46-BS | -143 | -192 | - | 1.1/2-11 | - | Female thread | Socket |
| 1.1/2 | 12T46 | B12T46 | LL12T46 | - | - | 1.1/2-11.1/2 | - | - | Female thread | Plug |
| 1.1/2 | - | B12T46-BS | LL12T46-BS | - | - | - | 1.1/2-11 | - | Female thread | Plug |
| 2 | 16T50 | B16T50 | LL16T50 | - | - | 2-11.1/2 | - | - | Male thread | Plug |
| 2 | - | 16S51 | LL16S51 | -143 | -192 | 2-11.1/2 | - | - | Female thread | Socket |
| 2 | - | 16S51-BS | LL16S51-BS | -143 | -192 | - | 2-11 | - | Female thread | Socket |
| 2 | 16T51 | B16T51 | LL16T51 | - | - | 2-11.1/2 | - | - | Female thread | Plug |
| 2 | - | B16T51-BS | - | - | - | - | 2-11 | - | Female thread | Plug |
| 2.1/2 | - | B20T55 | - | - | - | 2.1/2-8 | - | - | Male thread | Plug |
| 2.1/2 | - | 20S56 | - | -143 | -192 | 2.1/2-8 | - | - | Female thread | Socket |
| 2.1/2 | 20T56 | B20T56 | - | - | - | - | 2.1/2-8 | - | Female thread | Plug |
