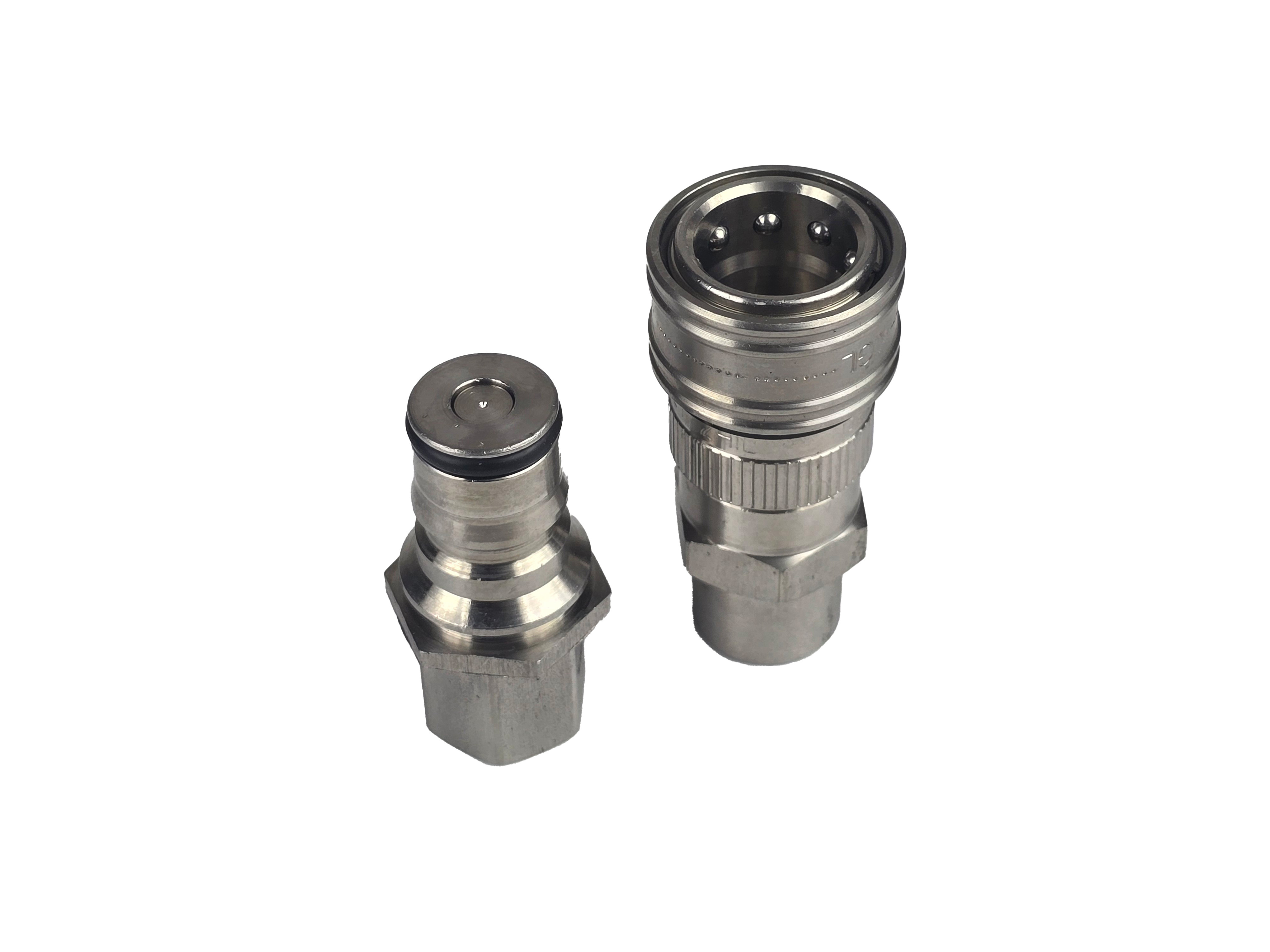

Hansen 2HKIG/2HKIL series non-interchange couplings
Hansen 2HKIG/2HKIL series non-interchange couplings
Stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid cross lines.
Product Details
Features include:
- 1/4" body size
- All stainless steel construction
- Various seal options available
- 2HKIG and 2HKIL do not interchange with each other
- Sockets have identification rings
- 2HKIL - white acetal
- 2HKIG - black acetal
Applications include: various liquids and gases etc.
A technical brochure and Safety Information Notice on this range of couplings is available in the downloads (tab) section shown above. A copy of these documents should be distributed and read by all individuals responsible for using and/or selecting this range of couplings, prior to use. For specific applications and working conditions , please consult Guyson Technical Sales Department.
Hansen 2HKIG and 2HKIL couplings can also be supplied as part of a ready-to-use flexible hose assembly: see our Kaptech flexible hose range for details.
| Body Size | Part Number | NPT Male Thread | NPT Female Thread | Coupling Type |
|---|---|---|---|---|
| 1/4 | 2HIG10 | 1/8-27 | - | Socket |
| 1/4 | 2HIG15 | 1/4-18 | - | Socket |
| 1/4 | 2HIG20 | 3/8-18 | - | Socket |
| 1/4 | 2HIG720 | 7/16-20 | - | Socket |
| 1/4 | 2HIGLLRA720 | 7/16-20 | - | Socket |
| 1/4 | 2KIGF15 | 1/4-18 | - | Plug |
| 1/4 | 2KIGF20 | 3/8-18 | - | Plug |
| 1/4 | 2HIG11 | - | 1/8-27 | Socket |
| 1/4 | 2HIG16 | - | 1/4-18 | Socket |
| 1/4 | 2KIGF16 | - | 1/4-18 | Plug |
| 1/4 | 2KIGF720 | - | 7/16-20 | Plug |
| 1/4 | 2KIGF | - | 9/16-1 | Plug |
| 1/4 | 2HIL10 | 1/8-27 | - | Socket |
| 1/4 | 2HIL15 | 1/4-18 | - | Socket |
| 1/4 | 2HIL20 | 3/8-18 | - | Socket |
| 1/4 | 2HIL720 | 7/16-20 | - | Socket |
| 1/4 | 2HILLLRA720 | 7/16-20 | - | Socket |
| 1/4 | 2KILF15 | 1/4-18 | - | Plug |
| 1/4 | 2KILF20 | 3/8-18 | - | Plug |
| 1/4 | 2HIL11 | - | 1/8-27 | Socket |
| 1/4 | 2HIL16 | - | 1/4-18 | Socket |
| 1/4 | 2KILF16 | - | 1/4-18 | Plug |
| 1/4 | 2KILF720 | - | 7/16-20 | Plug |
| 1/4 | 2KILF | - | 9/16-18 | Plug |
