Details
Conductive internal surfaces.
ATEX rated pneumatic equipment for blast and air wash controls.
ATEX rated timed electrical door interlocks.
ATEX rated electrical equipment and electrical control enclosure.

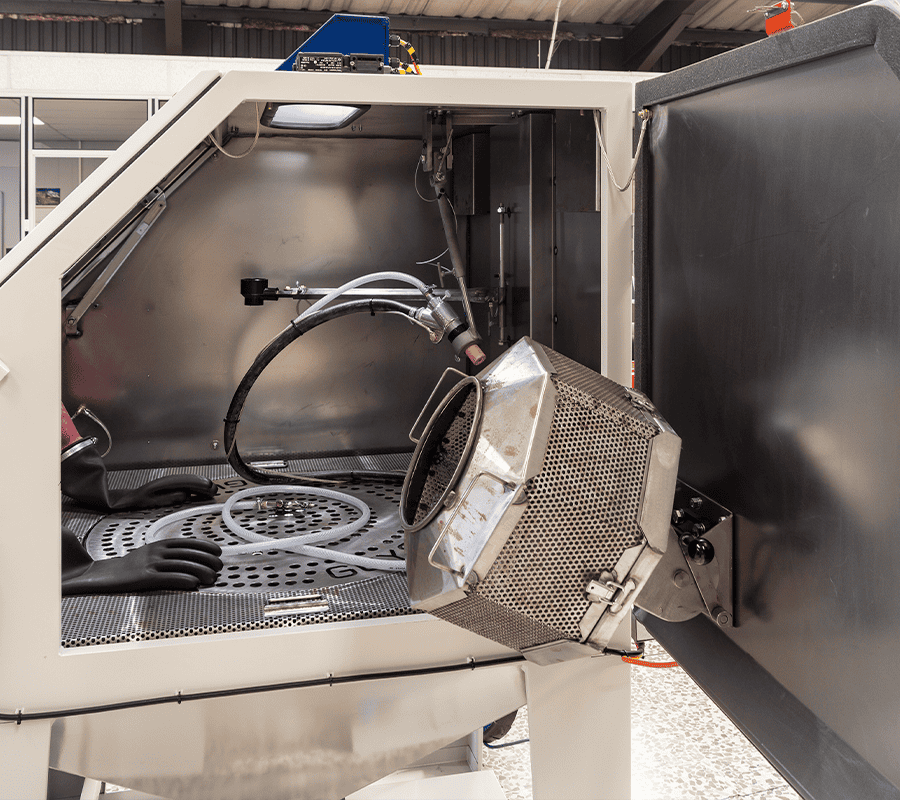

Rotary tumble basket option with triple sealed bearings and ATEX rated motor gearbox.

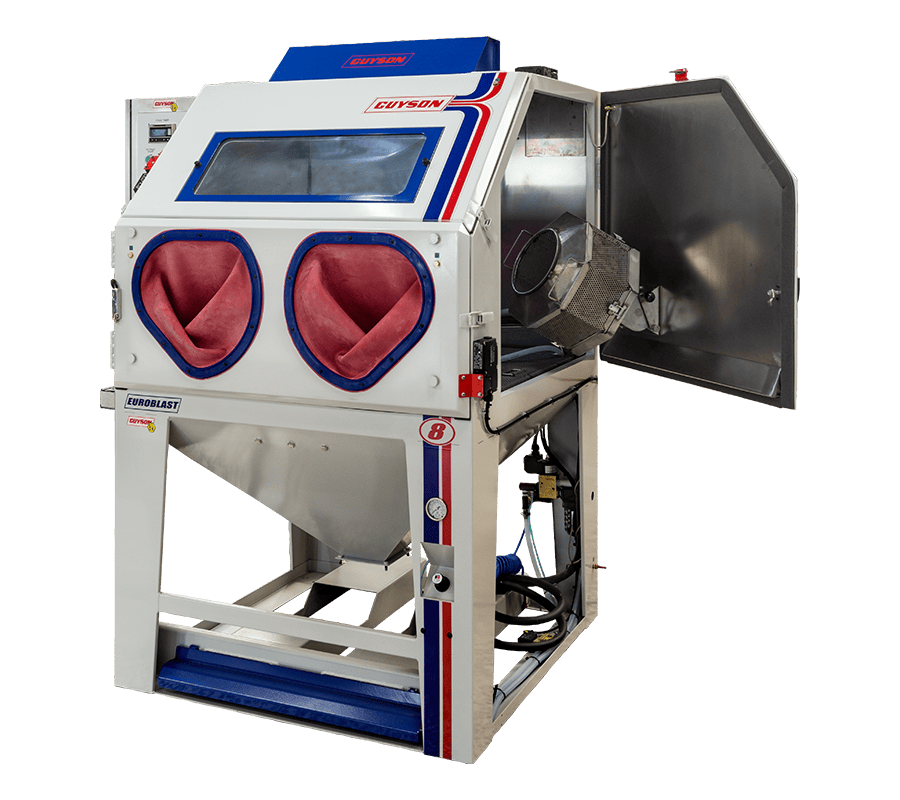

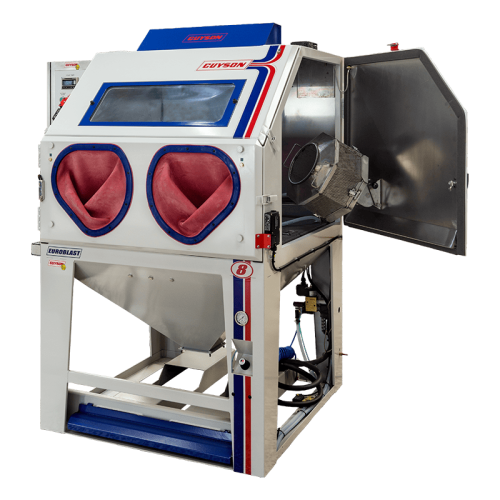

With the above safety features the Euroblast Ex range of ATEX blast cabinets have attained the following ATEX coding:
II 2/3 D Ex 60079-46 IIIC T135°C Db/Dc Tamb -15°C to +40°C .
Guyson's Euroblast SF Ex blast range also have dedicated Cyclone Separators and Dust Collectors. The CY 75/16 Ex Cyclone is equipped with full earth bonding and conductive internal surface, to attain the II 2/3 D Ex h IIIC T135°C Db/Dc ATEX coding, and is compliant with zones 21 internally and 22 externally.
The C600 Ex Dust Collector includes an ATEX rated fan motor, electrical equipment and controls, and pneumatic equipment. As well as full earth bonding, a secondary HEPA 14 filtration and conductive internal surfaces. The C600 has attained the II 2/3 D Ex 60079-46 IIIC T135°C Db/Dc ATEX coding, and is compliant with zones 21 internally and 22 externally.
| Model |
Euroblast SF Ex Plus |
|---|---|
| Hardware Type |
Manual |
| Machine Type |
Euroblast Ex (ATEX) – Blast Machines |
| Euroblast 6SF Ex Plus Overall Cabinet Dimensions (H x W x D) |
1825 x 1070 x 760 mm |
| Euroblast 8SF Ex Plus Overall Cabinet Dimensions (H x W x D) |
1825 x 1070 x 1070 mm |
Why Choose Guyson's Euroblast® Machines?
Discover four standout features of Guyson’s Euroblast sandblasting equipment.
Flexible Feed Solutions
Guyson’s Euroblast® machines are available in suction and pressure feed options, depending on production requirements.
Labour-Saving Blasting
The Euroblast® manual sandblasting range provides a faster alternative to labour-intensive operations, such as hand deburring, wire brushing and sanding.
Comprehensive Cabinet Choice
The Euroblast® machines come in an extensive range of ‘standard’ sizes, with exceptional component handling designs available to choose from.
Versatile To Applications
Guyson’s industrial sandblasting equipment is ideal for all types of sand, shot, grit or soda blasting and manual shot peening.
